Eco Idealu

Passive House Insulation Values, Premium Timber, Modern Design

The Eco Idealu takes aluminium clad timber windows to the next level by combining an additional layer of insulating foam with the beauty of timber and toughness of aluminium. It achieves excellent thermal performance and gives your home a luxurious look both inside and out. Together with triple glazing and warm edge spacers, the Eco Idealu is a passive house certified product and can achieve thermal U_w-values as low as 0.78 W/mÂ²K. This is thanks to its special polyurethane insulating wedge which ensures that the aluminium does not come into contact with the timber which allows for vapour diffusion and excellent energy values. The Eco Idealuâ€™s sleek look makes it ideal for modern architectural projects and perfect for passive house builds. Customise it further with special glazing options and the choice of different colours and finishes for each side.

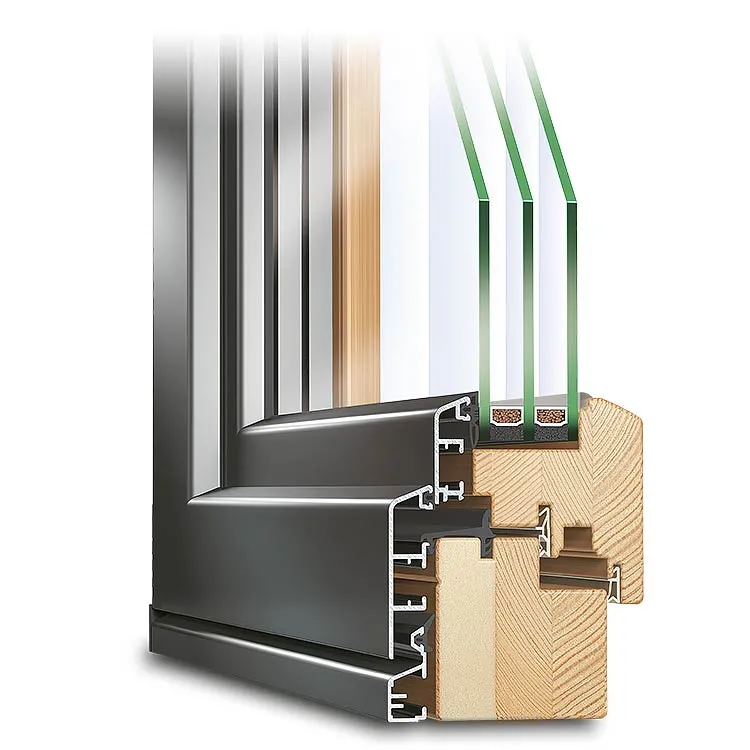

Profile ECO IDEALU recessed

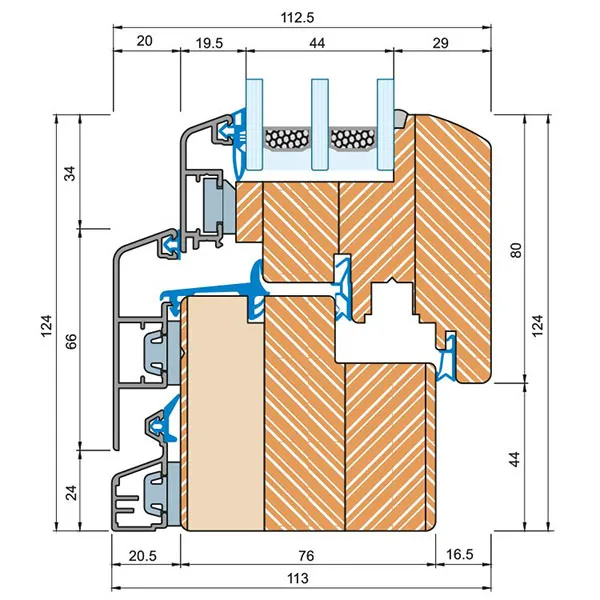

AluClad Timber Window Profile Recessed

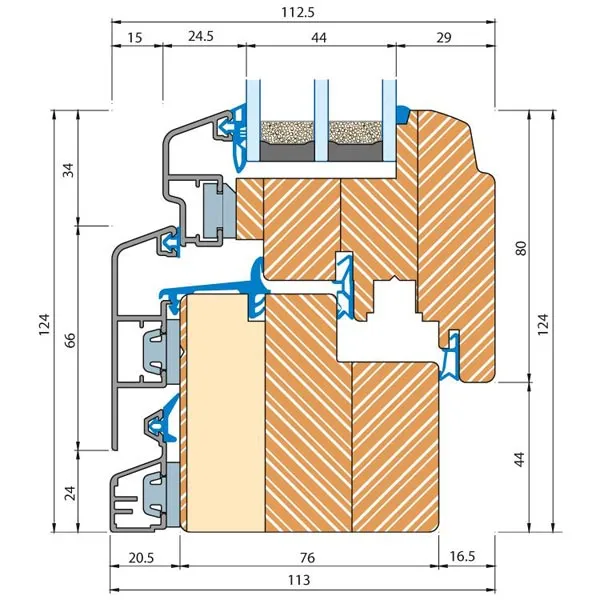

Profile ECO IDEALU Detail Semi-recessed

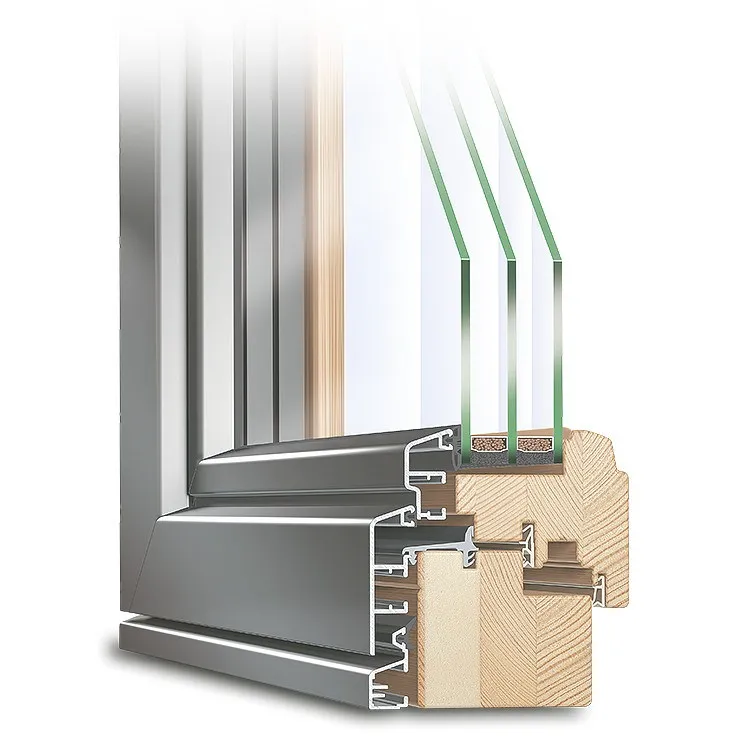

AluClad Timber Eco Idealu Semi-recessed

Details & Advantages of the ECO IDEALU Series

Passive house certified product, able to achieve U_w-values as low as 0.78 W/mÂ²K
97 mm Installation of depth with triple glazing possible up to 52 mm thick
Individual selection of timber â€“ Pine, Spruce, Larch, Alder, Cherry, Walnut, Birch, Eucalyptus, Meranti, and even Maple and Oak
A wide range of paints and varnishes for the interior and exterior
Low maintenance aluminium shell provides a weather barrier and thermal insulation – available in your choice of RAL colour
Extrusion-formed foam insulation within the timber laminate provides additional insulation
Thermally separated aluminium shell
Quality German Winkhaus fittings with tilt & turn opening, and optional concealed hinge design
Multipoint locking and fail-safe position locking handles provide safety and security
Profiles can be manufactured in an array of arches, angles and shapes to suit any building project
Glued timber edge bands with a continuous laminated top layer
Welded corners, edge pins with double slots, cams and v joints.
100% Made in Germany
Grade 1A timber
10 year guarantee on aluminium cladding and 5 year guarantee on timber surfaces

Extraordinary Energy Efficiency with Additional Insulating Foam

ECO IDEALU profiles impress by combining the benefits of timber with the the strength and weather resistance of aluminium.

Despite advances in synthetic frames made of uPVC, timber frames still excel in many areas. Combined with gas filled triple glazing, warm edge spacers and our innovativeÂ polystyrene foam, these window profiles go from strength to strength. The outer aluminium shell provides additional protection against heat loss.

The benefits of our premium ECO IDEALU line will last well into the future. Long after they pay for themselves, they’ll continueÂ saving you money monthly on energy bills and saving you time every year with little maintenance required.

Discover the Variety of Designs

ECO IDEALU profiles make a great impression with their beautiful timber interior look and sleek aluminium exterior. A wide range of RAL colours are available for both the aluminium and timber also offering the option to different colours on each or a simple natural varnish for the inside. Your choice of glazing bars, hardware and design mean you get an energy efficient, premium window in exactly the look and configuration you want.

The ECO IDEALU profiles makes a great addition to any home or apartment facade adding a modern look on the exterior and warm natural interior one.
